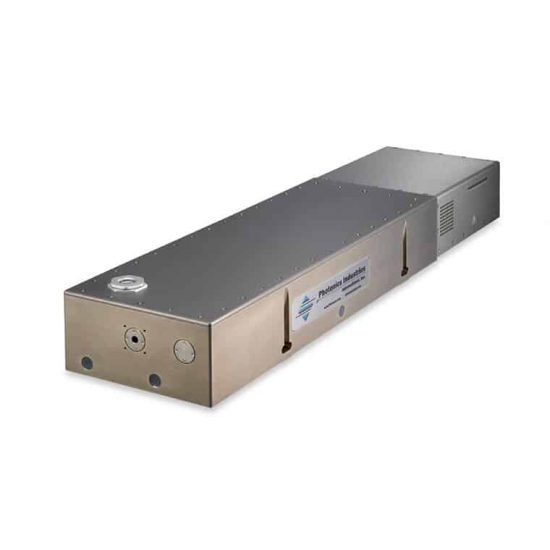

Optical Parametric Oscillator High Repetition Rate Diode Pumped Laser
Photonics Industries’ DP Series OPOs allows you to choose a fixed wavelength in the eye safe wavelength range of ~1.516μ up to 2μm. Pulse energies at this eye safe wavelength up to 4mJ in a TEM00 mode. Other wave- lengths in the 1.5 to 2um and 2.2 to 3.4um range are also available. Photonics Industries’ OPO Series of novel diode-pumped, intra-cavity frequency conversion, Q-switched Optical Parametric Oscillator (OPO) represents the FIRST commercially available OPOs to produce high pulse energy pulses at a high repetition rate of up to 50 kHz. The DS OPO produce stable peak power output of up to 300 kWatts with milli-Joule levels of energy per pulse, at kHz repetition rates in a compact, industry rugged design. It can also produce 10 Watts of average power at a repetition rate of approximately 10 kHz. These lasers are produced with either a fixed wavelength, or continuously tunable wavelength in the region of 1.5 μm to 3.4 μm. Lower power air-cooled versions are also available. Harmonic versions available to provide any fixed wavelength selectable bewtween 1um and 750nm or 666nm to 255nm
Application
Chemical Detection
Eye-Safe Illumination
NIR Spectroscopy
MID-IR Spectroscopy
LIDAR
IR-MALDI
Rangefinder, Designator
Material Processing Research & Production
Biophotonic Research
